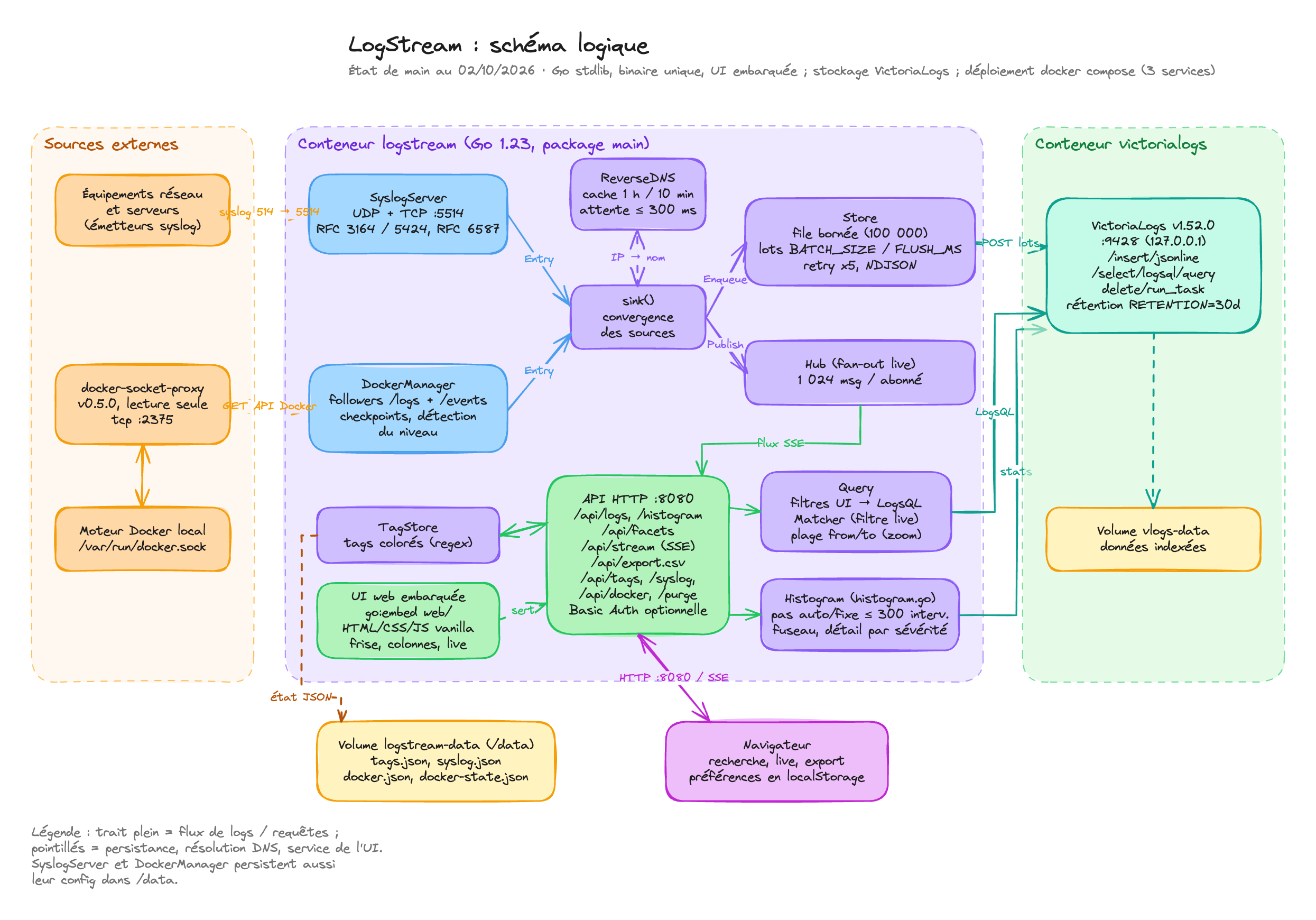

cedricandClaude Opus 5.5 459d5cb79b Architecture diagram: current main, timeline histogram ...

- Title without the commit hash (the hand-drawn font turned "32593b9" into
  "3259369"); the subtitle dates the diagram instead.
- New Histogram (histogram.go) box: API -> histogram -> VictoriaLogs (stats).
- Query mentions the from/to range (zoom); the web UI mentions the
  timeline, columns and live view.
- Multi-segment arrows drawn straight, routed between the containers.
- PNG regenerated from the .excalidraw source (Excalidraw 0.18 renderer).
- README: histogram.go in the Search flow.

Co-Authored-By: Claude Opus 5.5 (1M context) <noreply@anthropic.com>

2026-10-02 09:17:52 +02:00

711 KiB

2490x1740px

Raw History
